Xiaomi XRING O3 Unveiled: 3nm Process, 5.22M+ AnTuTu Score, and Next-Gen LPDDR6 Memory

Xiaomi has officially pulled back the curtain on its most ambitious mobile processor to date: the XRING O3. Manufactured on TSMC’s advanced 3nm node, this flagship System-on-Chip (SoC) packs over 24 billion transistors into a tight 133mm² die area.

With an astonishing AnTuTu v11 score exceeding 5.22 million, the XRING O3 sets a massive benchmark for next-generation mobile silicon, delivering desktop-class ray tracing, custom on-device AI acceleration, and record-setting memory response times.

For complete tech coverage, mobile updates, and deep dives, stay tuned to our latest teardowns on NokiaPowerUser.

1 of 7

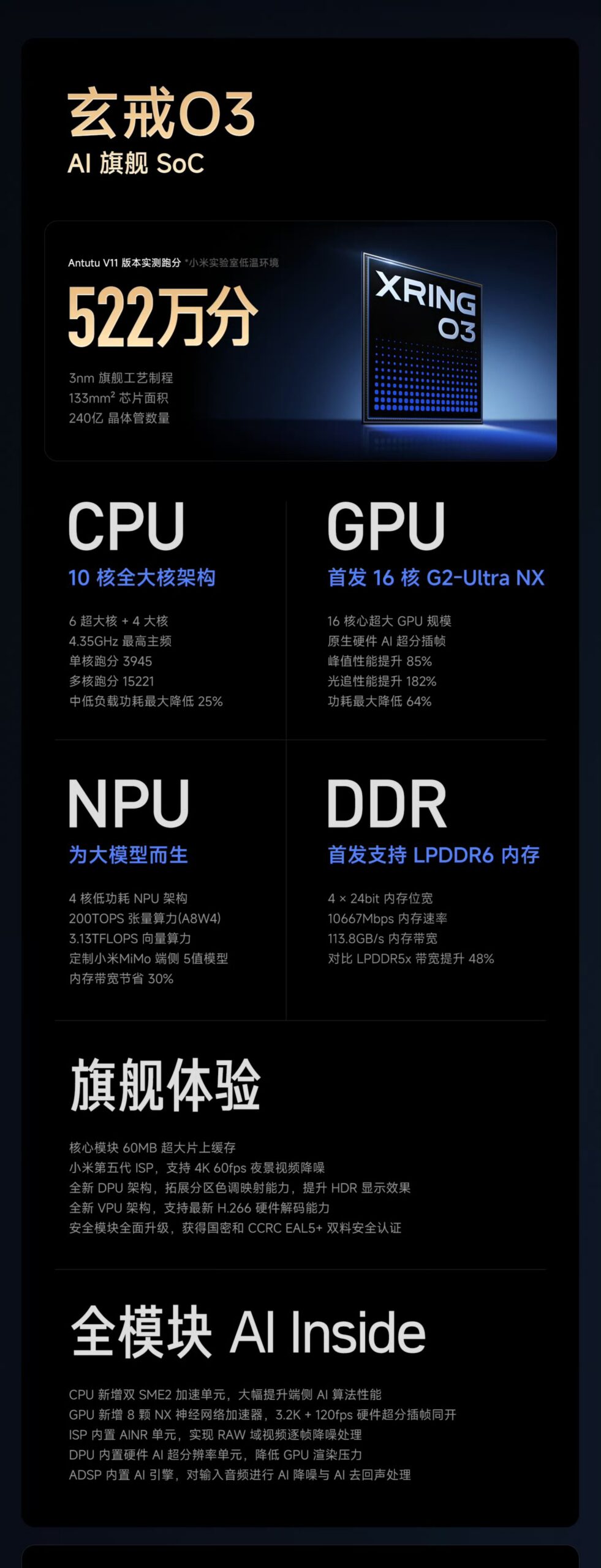

Technical Specifications at a Glance

10-Core CPU Architecture: Clock Speeds & Dual SME2 Units

The CPU pipeline utilizes a 10-core dynamic architecture split into 6 Super Cores and 4 Large Cores, delivering a massive 60% peak performance increase over the previous generation:

• 2× C1-Ultra Cores @ 4.35 GHz (Super Cores for single-threaded bursts)

• 4× C1-Premium Cores @ 3.68 GHz (Super Cores for sustained high load)

• 4× C1-Pro Cores @ 3.15 GHz (Large Cores for power efficiency)

To accelerate heavy mathematical matrices and vector calculations, the CPU integrates Dual SME2 (Scalable Matrix Extension) acceleration units. A unified 60MB total cache minimizes execution delays during heavy multitasking.

G2-Ultra NX GPU: Desktop-Class Ray Tracing

Graphics capabilities see a dramatic leap forward thanks to the 16-core G2-Ultra NX GPU:

• +85% Peak Performance: Smooth execution of high-framerate titles.

• -64% Power Consumption: Extended gaming endurance under identical workload demands.

• +182% Ray Tracing Boost: Hardware-accelerated dynamic shadows, reflections, and global illumination.

• Native AI Frame Interpolation: Real-time super-resolution built straight into the GPU pipeline.

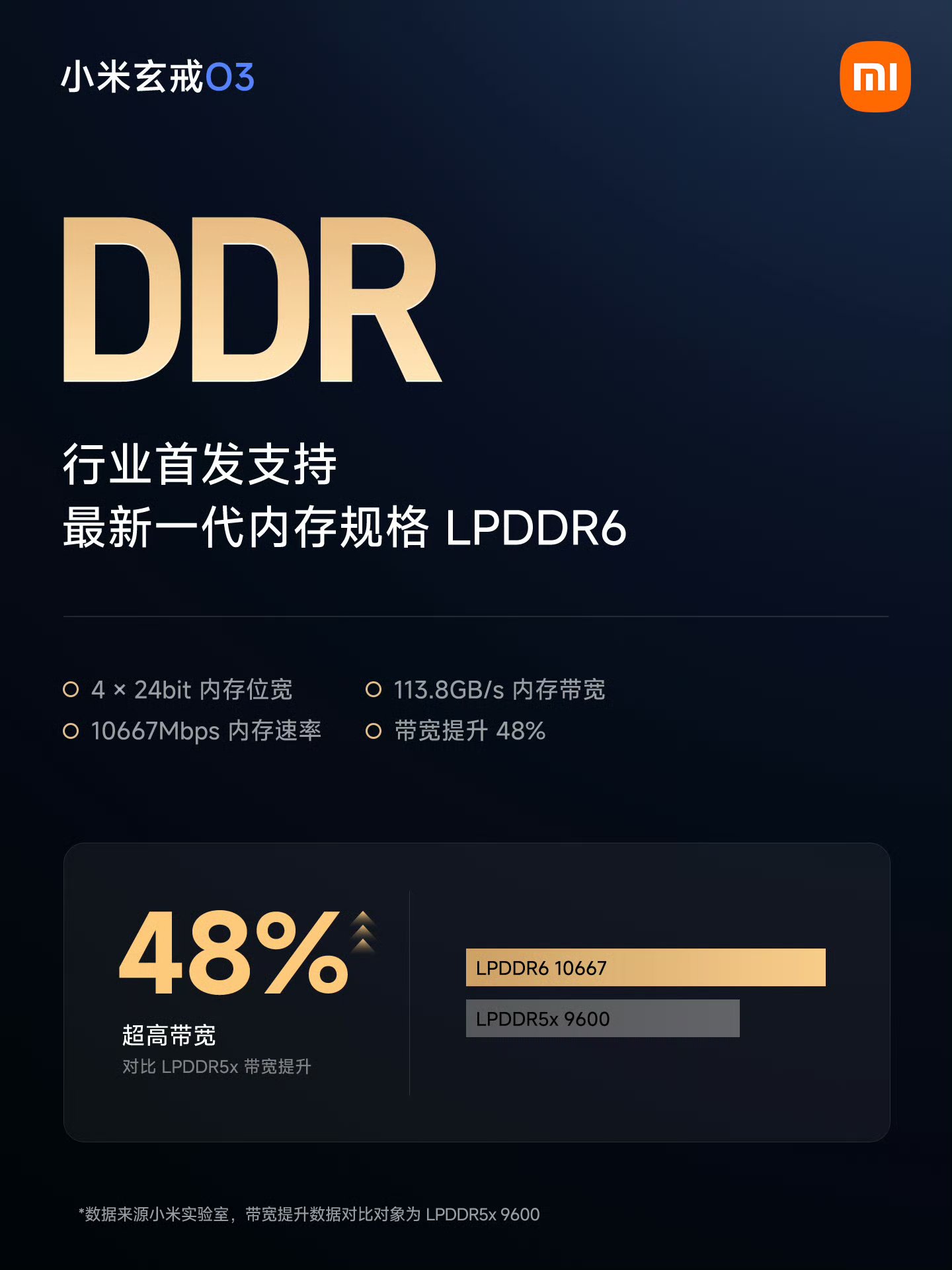

Next-Gen Memory Architecture: Outperforming Apple’s Latency

The XRING O3 is the industry’s first mobile processor designed to support LPDDR6 RAM, driving substantial improvements across bandwidth, timing, and latency:

• 113.8 GB/s Bandwidth: Powered by a 4×24-bit memory bus width running at 10,667 Mbps (a 48% bandwidth uplift).

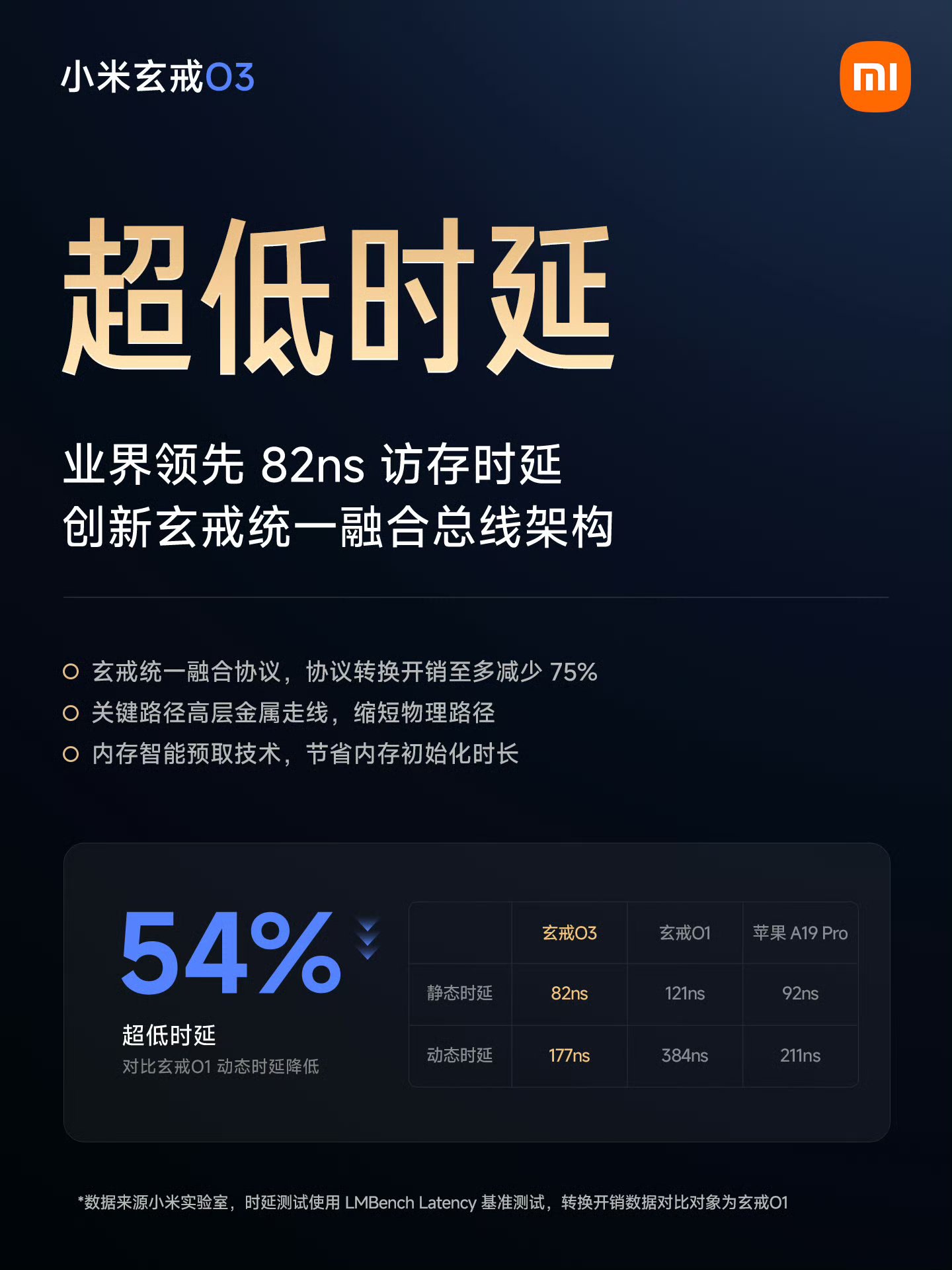

• 82ns Latency: Record-low memory access latency, surpassing Apple’s A19 Pro metrics.

• 54% Lower Latency: Substantial latency optimization over the XRING O1.

• Xuanjie Unified Integration Protocol: Reduces protocol conversion overhead by up to 75%. Physical interconnect paths are shortened via high-layer metal traces and intelligent memory prefetching.

On-Device AI Engine: MiMo Optimization & 200 TOPS Compute

AI and machine learning tasks are handled by an integrated 4-core low-power NPU architecture paired with 8 NX Neural Network units, yielding a 45% increase in on-device AI performance:

• 200 TOPS Tensor Computing Power (A8W4 precision).

• 3.13 TFLOPS Vector Computing Power.

• SIMT Architecture: Single Instruction Multithreaded execution for massive parallel workflows.

• MiMo Integration: Customized specifically for Xiaomi’s on-device 5-value MiMo AI model.

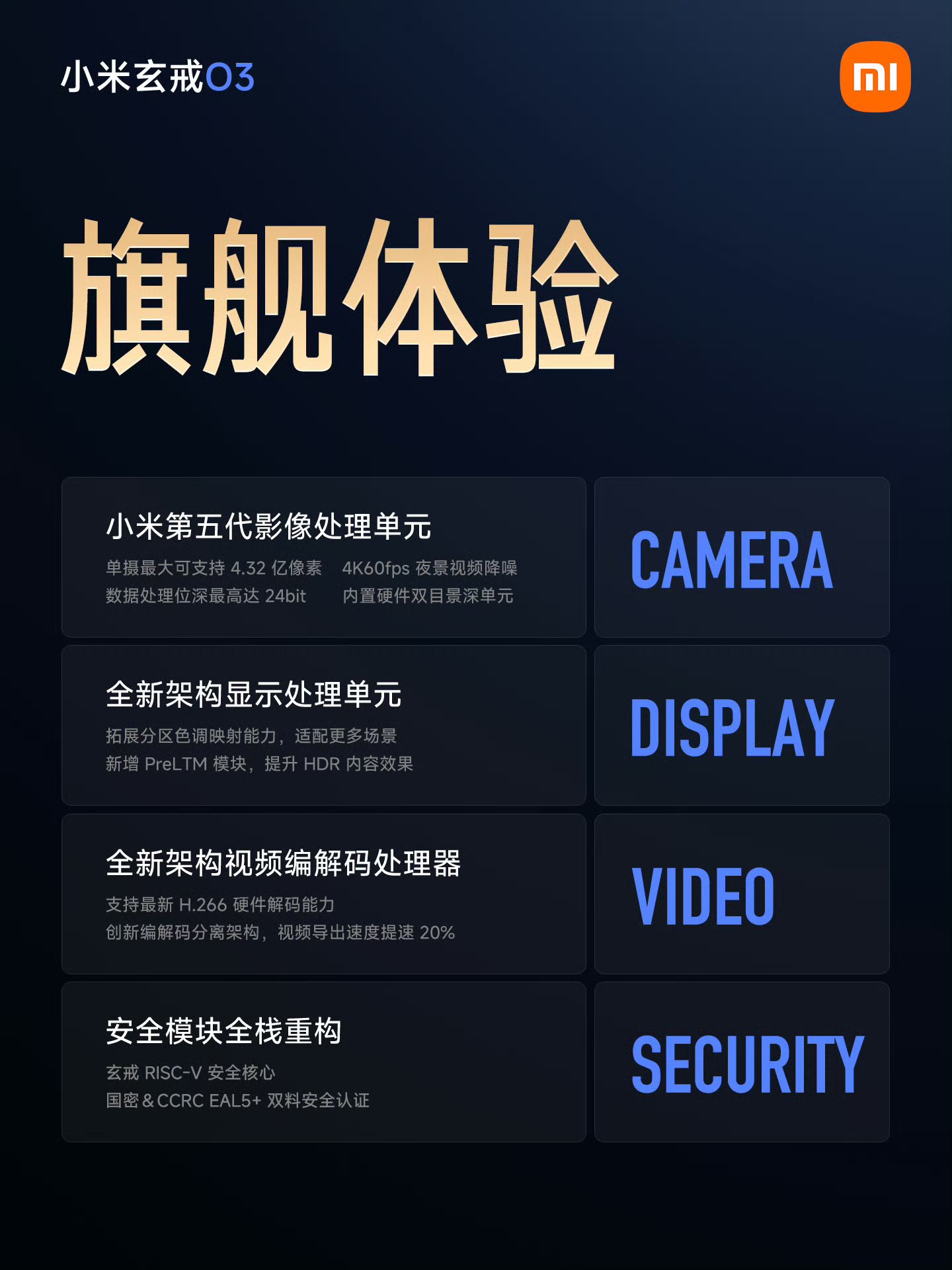

Camera, Display, Security, and Physical Engineering

• 5th-Gen Image Signal Processor (ISP): Supports camera sensors up to 432 Megapixels, 4K 60FPS video capture, 24-bit bit depth, hardware binocular depth processing, and low-light video noise reduction.

• Display Engine: Features enhanced zone tone mapping and a dedicated PreLTM module to boost dynamic range on high-brightness HDR panels.

• Video Codec Engine: Includes full hardware decoding support for the latest H.266 format, utilizing a codec separation design that speeds up video rendering and exports by 20%.

• Enterprise-Grade Security: A custom Xuanjie RISC-V Security Core certified to CCRC EAL5+ standards alongside National Cryptographic compliance.

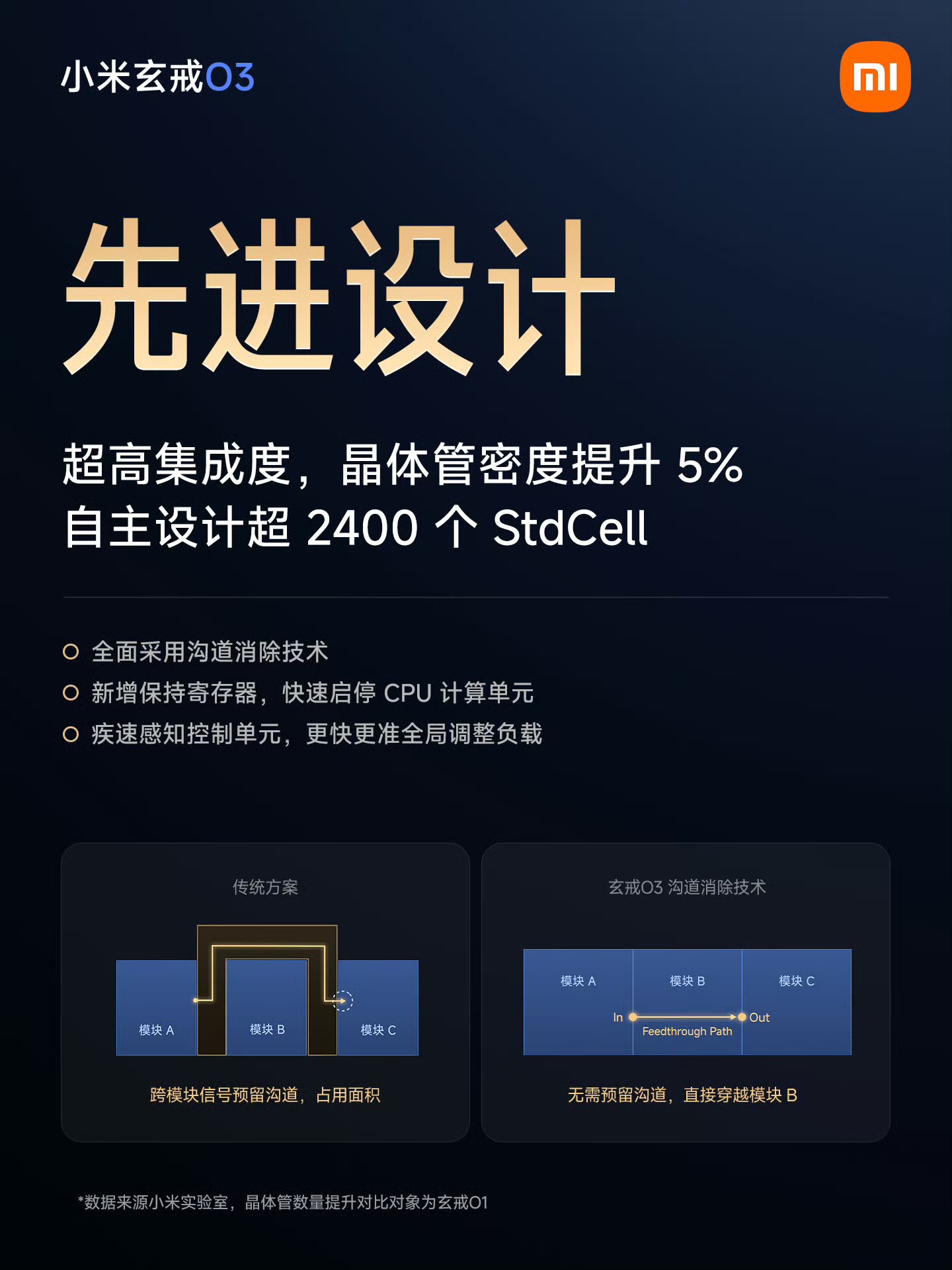

• Physical Die Optimization: Built using custom-designed in-house StdCells (2,400+ total), trench elimination technology, rapid power-gating holding registers, and a quick-sensing load control unit.
